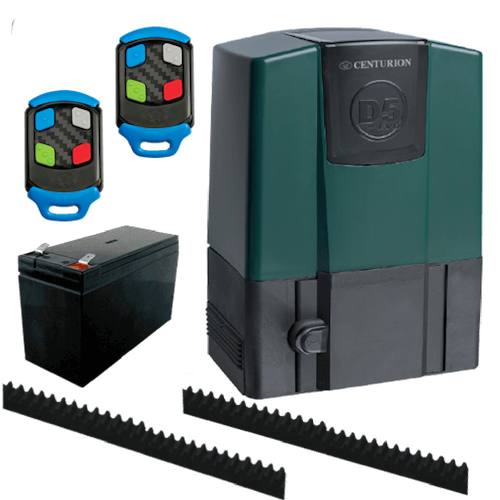

Centurion D5-EVO – DOMESTIC & LIGHT-INDUSTRIAL SLIDING GATE MOTOR
KSh72,000.00
The evolution of the tried and tested D5 500kg gate motor for domestic and light-industrial applications. Incorporating battery backup you can bank on, potent push force and an intelligent LCD controller for easy setup, not to mention a plethora of features all tailor-made for the ultimate in security and convenience, the CENTURION D5-Evo is the apex predator of gate motors – it simply has no competition and no equal.
Description
D5-EVO TECHNICAL DATA:
| Description | |
|---|---|
| Input voltage | 90 – 240V AC +/-10%, 50Hz |
| Motor voltage | 12V DC |
| Motor power supply | Battery-driven – 2A charger |
| Push force – rated | 17kgf |
| Gate speed at push force < 5kgf | 22m/min |
| Gate speed at rated push force | 18m/min |
| Duty cycle – mains present | 50% | 150 Max Operations per day |
| Duty cycle – mains present | 20% | 55 Max Operations per day |
| Gate mass – maximum | 500kg |
| Onboard receiver type | CENTURION code-hopping,multichannel, 433MHz, capacity – 500 transmitter buttons |
[*] – Can operate off a solar supply, consult Centurion Systems for assistance. [*] – Based on a pull force of less than 50% of rated. [**] – 2 x 7Ah battery (can be upgraded for longer power failure autonomy). [***] – Based on 25°c ambient temperature and unit not in direct sunlight.
