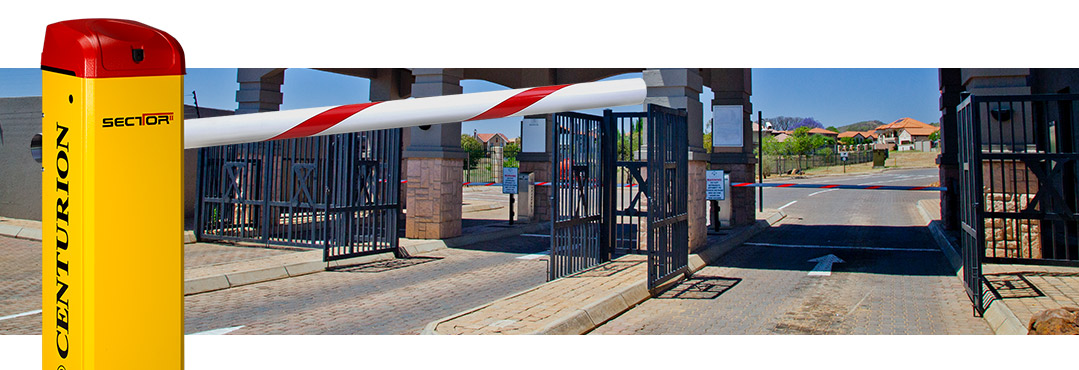

HIGH-VOLUME INDUSTRIAL TRAFFIC BARRIERS
MAIN FEATURES:
- High-volume capability.
- Battery backup.
- Rapid boom pole raising (3 metre version < 1.2 seconds).
- Smooth, intelligent speed control.
- High-torque boom pole operation.
- Robust, durable and slimline operator casing.
- LCD user interface for simple setup.
- Onboard Centurion code-hopping multichannel receiver with selective add and delete.
- Integrated ChronoGuard timer functionality.
- Pre-galvanised enclosure improves corrosion resistance (of mild steel variant).
- Electronics reside at the top of the enclosure for easy access.
- Powder-coated aluminium – with condensation shield – lid gives the unit an updated appearance and protects electronics from moisture damage.
- Improved cable routing and securing make for a neat and tidy installation.
- Easy to achieve AC and DC isolation.
Description
| SECTOR 3 | SECTOR 4 | ||
|---|---|---|---|
| Input Voltage | 220 – 240V AC +\- 10% @ 50Hz | 220 – 240V AC +\- 10% @ 50Hz | 220 – 240V AC +\- 10% @ 50Hz |
| Motor Voltage | 12V DC | 12V DC | 12V DC |
| Motor Power Supply | Battery-driven [*] – 2A Charger | Battery-driven [*] – 2A Charger | Battery-driven [*] – 2A Charger |
| Boom Pole Length | 3.0m | 4.5m | 6.0m |
| Boom Pole Raise Time | 1.2 sec | 3 sec | 3 sec |
| Daily Operations – Max | 3000 | 3000 | 3000 |
| Duty Cycle – Mains Present | 80% [**] | 80% [**] | 80% [**] |
| Housing Specification [***] | Inland – Zinc-passivated mild steel Coastal plains – Grade 430 Stainless Steel with Epoxy Coating Marine – Grade 316 Brushed Stainless Steel | Inland – Zinc-passivated mild steel Coastal plains – Grade 430 Stainless Steel with Epoxy Coating Marine – Grade 316 Brushed Stainless Steel | Inland – Zinc-passivated mild steel Coastal plains – Grade 430 Stainless Steel with Epoxy Coating Marine – Grade 316 Brushed Stainless Steel |
| Barrier Pole Specification | Aluminium, Round Profile, Epoxy-coated White, Red Reflective Tape | Aluminium, Round Profile, Epoxy-coated White, Red Reflective Tape | Aluminium, Round Profile, Epoxy-coated White, Red Reflective Tape |
| Onboard Receiver Specification | CENTURION code-hopping, multichannel, 433MHz, with 500 remote control button storage capacity | CENTURION code-hopping, multichannel, 433MHz, with 500 remote control button storage capacity | CENTURION code-hopping, multichannel, 433MHz, with 500 remote control button storage capacity |
[*] – Can operate off a solar supply, consult Centurion Systems for assistance. [*] – 7Ah battery (can be upgraded for longer power failure autonomy). [**] – Based on 25°c ambient temperature and unit not in direct sunlight. [***] – Housing available in a Grade 430 stainless steel for coastal areas with no airborne salt and Grade 316 for extreme corrosion environments.
